Proven quality from one of the worlds leading Farm Machinery Manufacturers with full in-cabin dual hydraulic controls.
These are versatile machines suitable for water control and track creation.
Shape your ground for Winter, improve access, maximise your irrigation, fertiliser and farm performance.

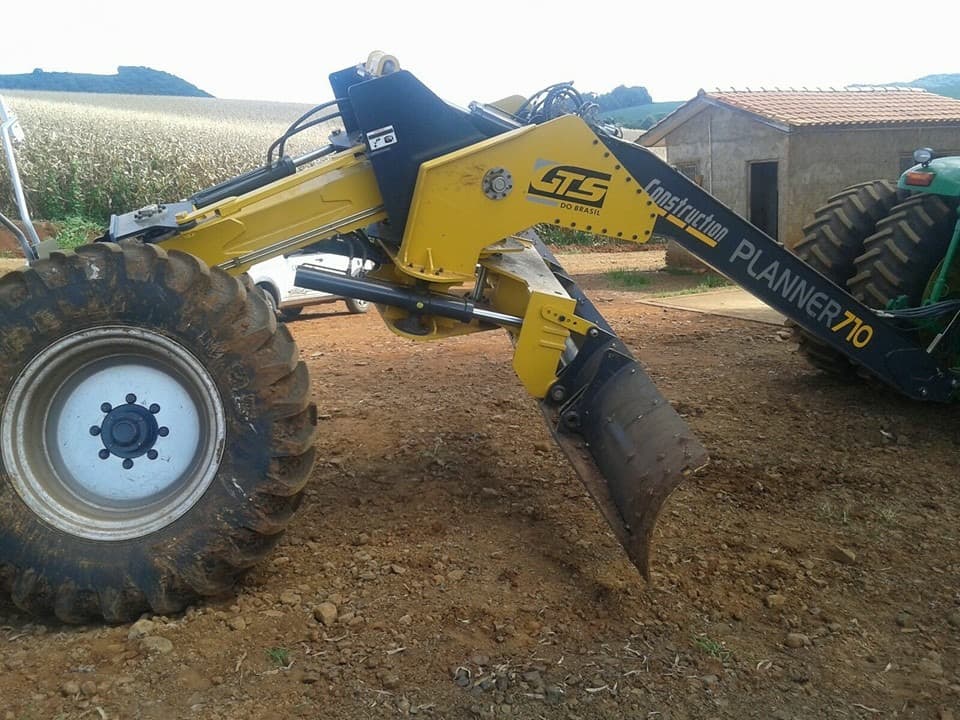

These new GTS Planner Graders are quality Farm Machinery and have the strength and control to help boost your farms productivity.
The 710 model features four hydraulic functions:
Drawbar Offset – To allow the machine to work offset from the position of the tractor.
Hydraulic Lift and lowering.
Hydraulic Blade twist allowing the blade to angle in both directions.
Hydraulic Blade Tilt allowing for grading of roads or sharp drains.
Specifications
| Model | Planner 710 |
| Hp Requirement | 120-250 hp |
| Working width | 4.2m |
| Working length | 7.4m |
| Weight | 4000kg |
| Tyres | 18.4 R30 |
Features
FLOATING AND SWIVELLING DRAWBAR PULL
DRAWBAR OFFSET
Performed via remote control, through the cylinder and combined with a pantographic mechanism. With the planner axis shifted to one side, the blade is shifted to the opposite side. This allows for greater lateral range, i.e. the blade works at points where the tractor and planner wheels cannot reach.
CURVED BLADE WITH REPLACEABLE CUTTING EDGE
HYDRAULIC BLADE ROTATION
Two double acting cylinders allow a for 60 degrees rotation.

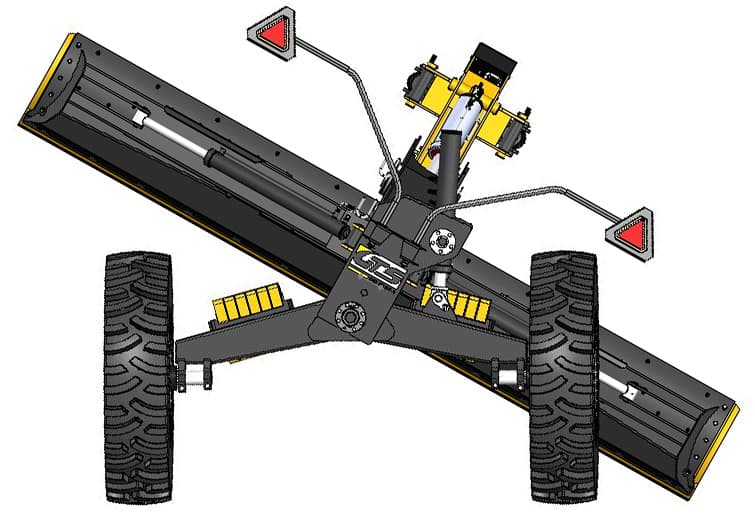

BLADE TILT SYSTEM

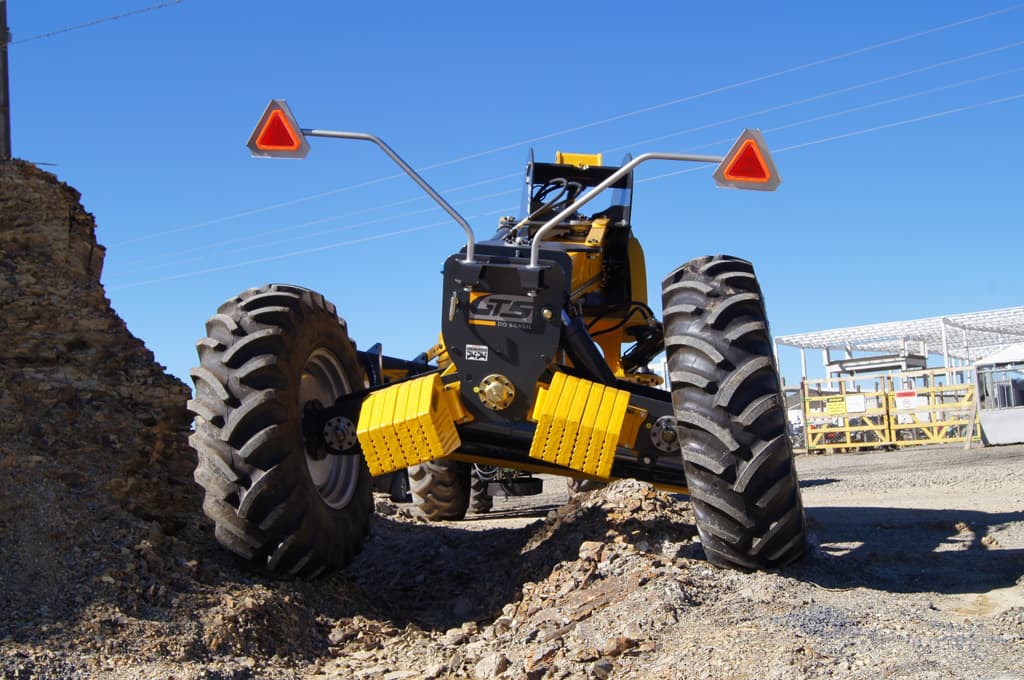

INDEPENDENT REAR AXLES
Tackles uneven ground and maintains optimum Grader blade angle.

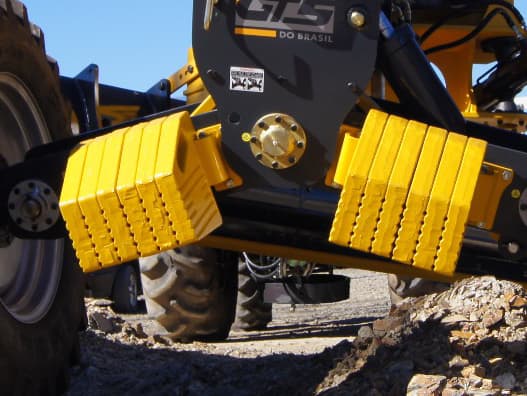

ADJUSTABLE WEIGHTS
HYDRAULIC LIFT & LOWERING
Adjustable working height, controlled hydraulically.

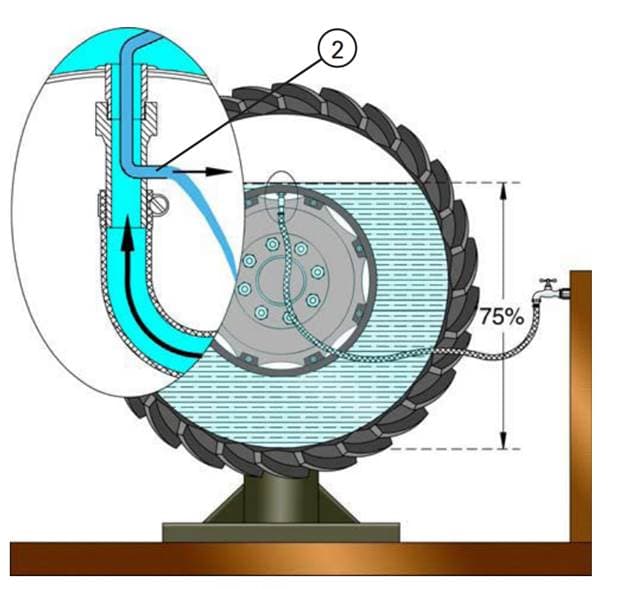

BALLAST OF WHEELS (WITH WATER)

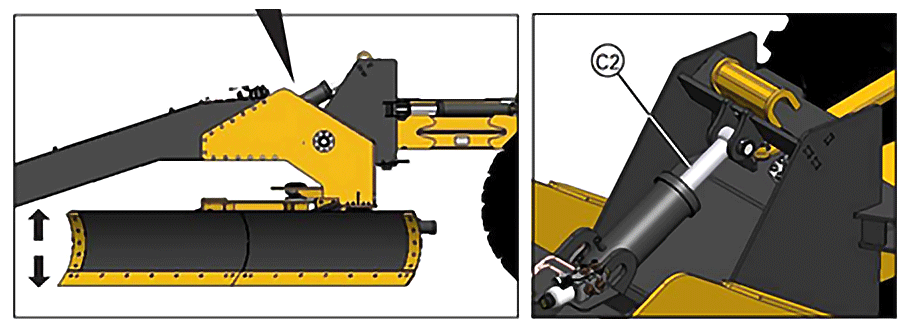

SWIVEL HITCH. SLIDING SHOOTING CENTER
