Proven quality from one of the worlds leading Farm Machinery Manufacturers with full in-cabin dual hydraulic controls.
This is a versatile machine suitable for water control and track creation.
Shape your ground for Winter, improve access, maximise your irrigation, fertiliser and farm performance.
These new GTS Planner Graders are quality Farm Machinery and have the strength and control to help boost your farms productivity.
The 510 model features four hydraulic functions:
Drawbar Offset – To allow the machine to work offset from the position of the tractor.
Hydraulic Lift and lowering.
Hydraulic Blade twist allowing the blade to angle in both directions.
Hydraulic Blade Tilt allowing for grading of roads or sharp drains.
Specifications
| Model | Planner 510 |
| Hp Requirement | 90+ hp |
| Working width | 4.2m |
| Working length | 7.82m |
| Weight | 3100kg |
| Tyres | 14.9 R26 |
Features

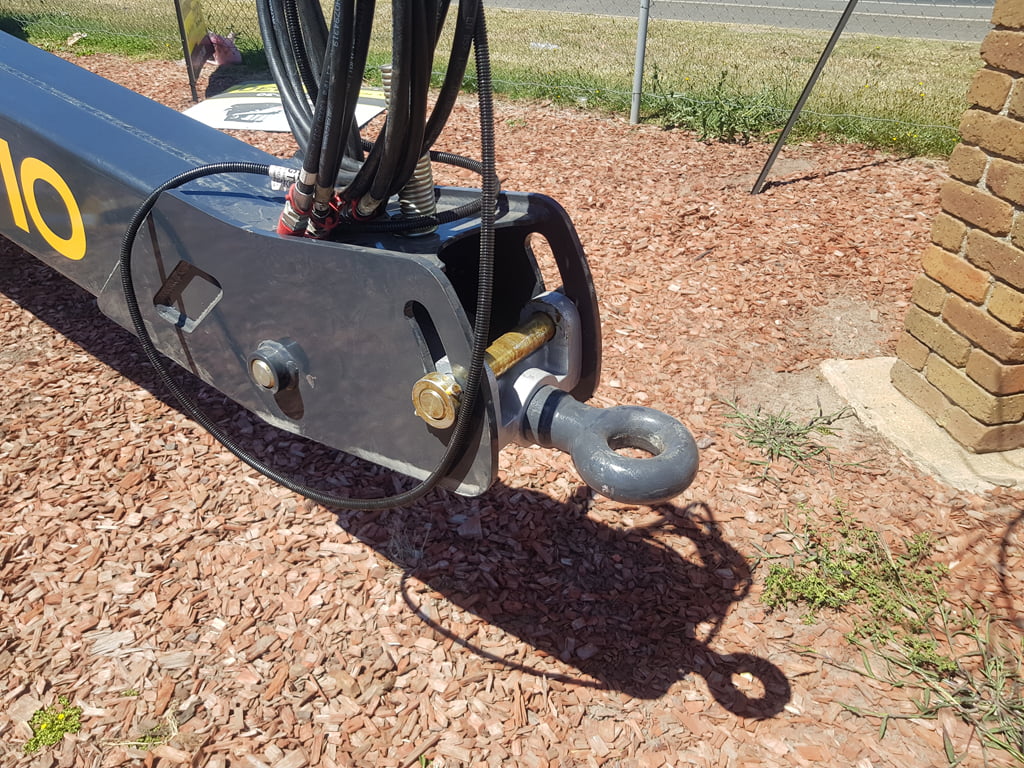

FLOATING AND SWIVELLING DRAWBAR PULL

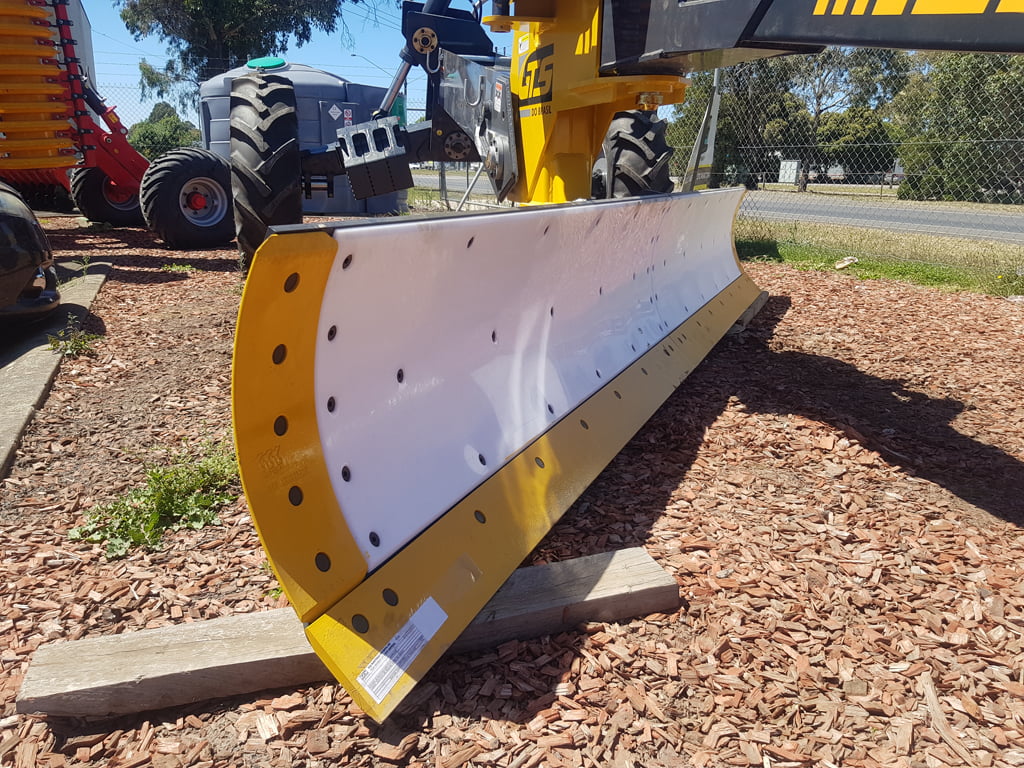

CURVED BLADE WITH REPLACEABLE CUTTING EDGE
HYDRAULIC BLADE ROTATION
Two double acting cylinders allow a for 60 degrees rotation.
BLADE TILT SYSTEM

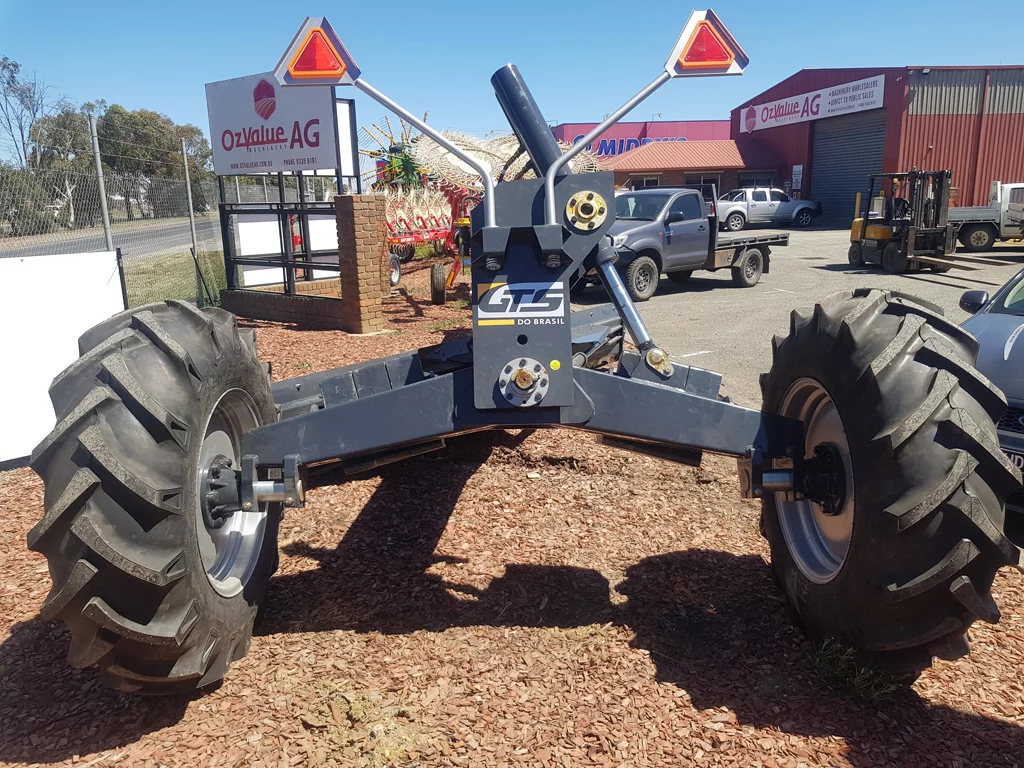

INDEPENDENT REAR AXLES
Tackles uneven ground and maintains optimum Grader blade angle.
